248 - meter & clock (Denso) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec

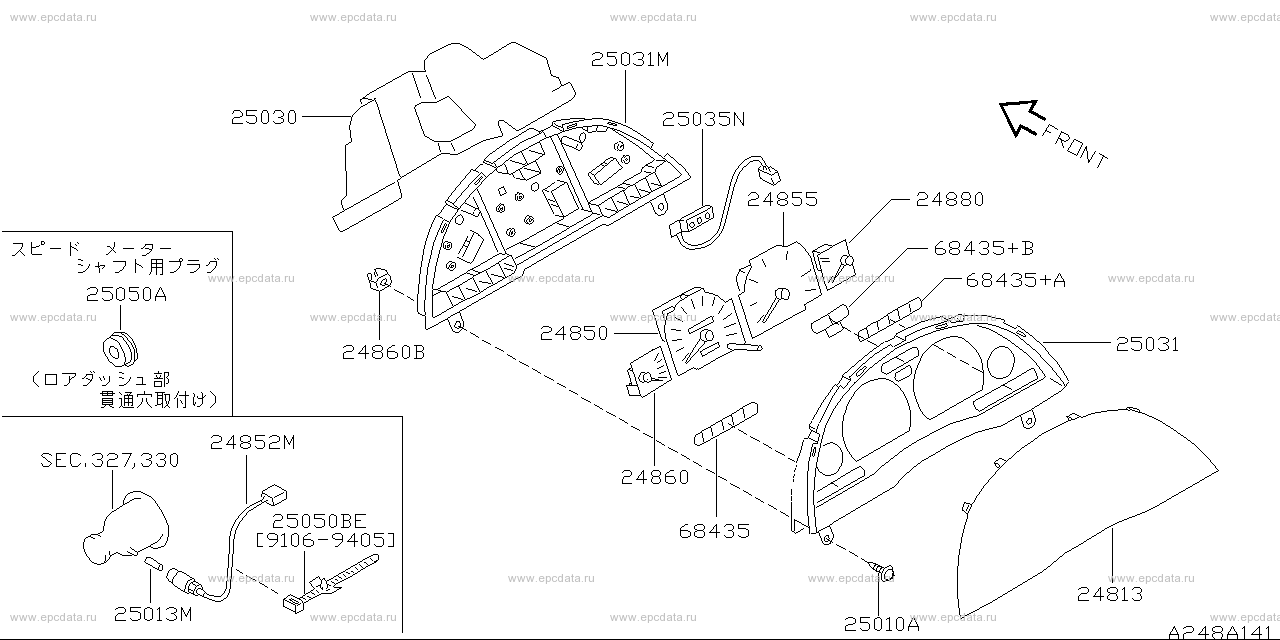

W.(SR20DE+CD20T)	08.1995 - 01.1997	フロント ビュー タコ メーター付き

Open full screen picture Up to the top

24813 - cover, front meter 24850 - speedometer assembly 24852M - sensor, speedometer 24855 - tachometer assembly 24860 - meter assembly, fuel 24860B - nut 24880 - meter assembly, water temperature 25010A - bolt 25013M - coupling, speed sensor 25030 - plate assembly, printed circuit 25031 - housing, meter combination upper 25031M - housing, meter combination lower 25035N - plate assembly, printed circuit 25050A - grommet 25050BE - clip, flexible shaft 68435 - lens, warning lamp 68435+A - lens, warning lamp 68435+B - lens, warning lamp

---

Applies for models	Manufacture period	Spec

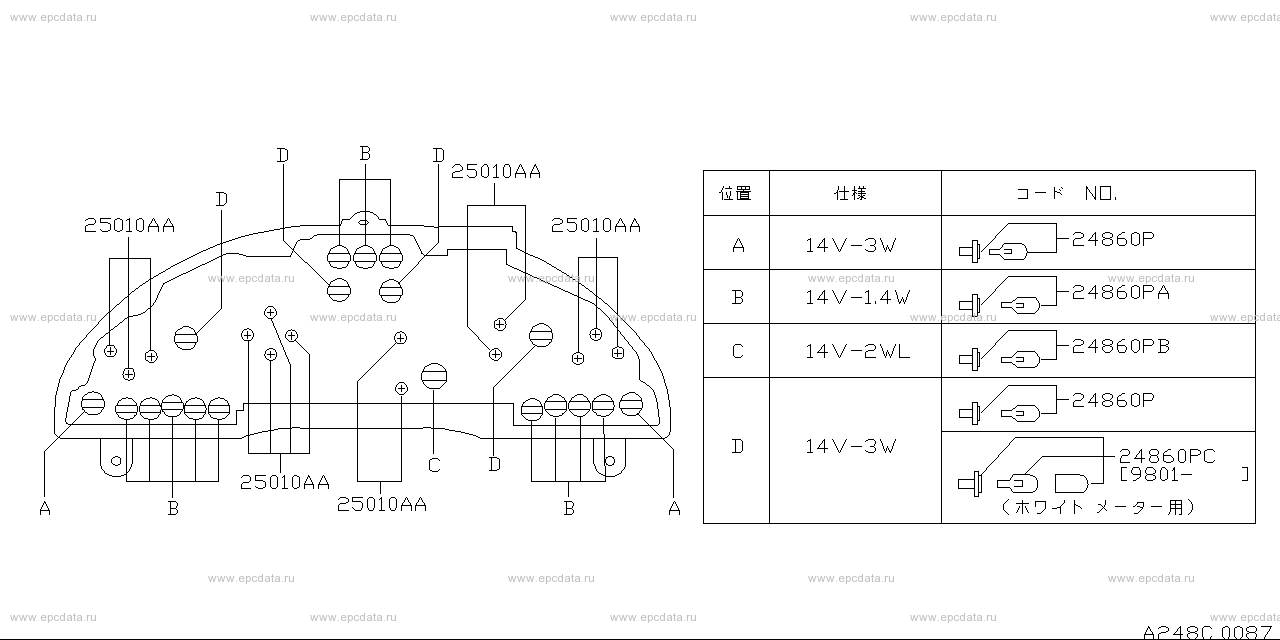

W.(SR20DE+CD20T)	08.1995 - 01.1997	リヤ ビュー タコ メーター付き

Open full screen picture Up to the top

24860P - socket & valve assembly 24860PA - socket & valve assembly 24860PB - socket & valve assembly 24860PC - socket & valve assembly 25010AA - bolt 25010AB - bolt 25010AC - bolt

---

Applies for models	Manufacture period	Spec
W	01.1997 - 01.1998	フロント ビュー タコ メーター付き
W	01.1998 - ...	フロント ビュー タコ メーター付き

Open full screen picture Up to the top

0854041210 24813 - cover, front meter 24850 - speedometer assembly 24852M - sensor, speedometer 24855 - tachometer assembly 24860 - meter assembly, fuel 24860B - nut 24860PD - socket & valve assembly 24880 - meter assembly, water temperature 24895N - lens 25010A - bolt 25013M - coupling, speed sensor 25030 - plate assembly, printed circuit 25031 - housing, meter combination upper 25031M - housing, meter combination lower 25035N - plate assembly, printed circuit 25035NA - plate assembly, printed circuit 25050A - grommet 25050B - clip, flexible shaft 68435 - lens, warning lamp 68435+A - lens, warning lamp 68435+B - lens, warning lamp

---

Applies for models	Manufacture period	Spec
W	01.1997 - 01.1998	リヤ ビュー タコ メーター付き
W	01.1998 - ...	リヤ ビュー タコ メーター付き

Open full screen picture Up to the top

24860P - socket & valve assembly 24860PA - socket & valve assembly 24860PB - socket & valve assembly 24860PC - socket & valve assembly 25010AA - bolt
